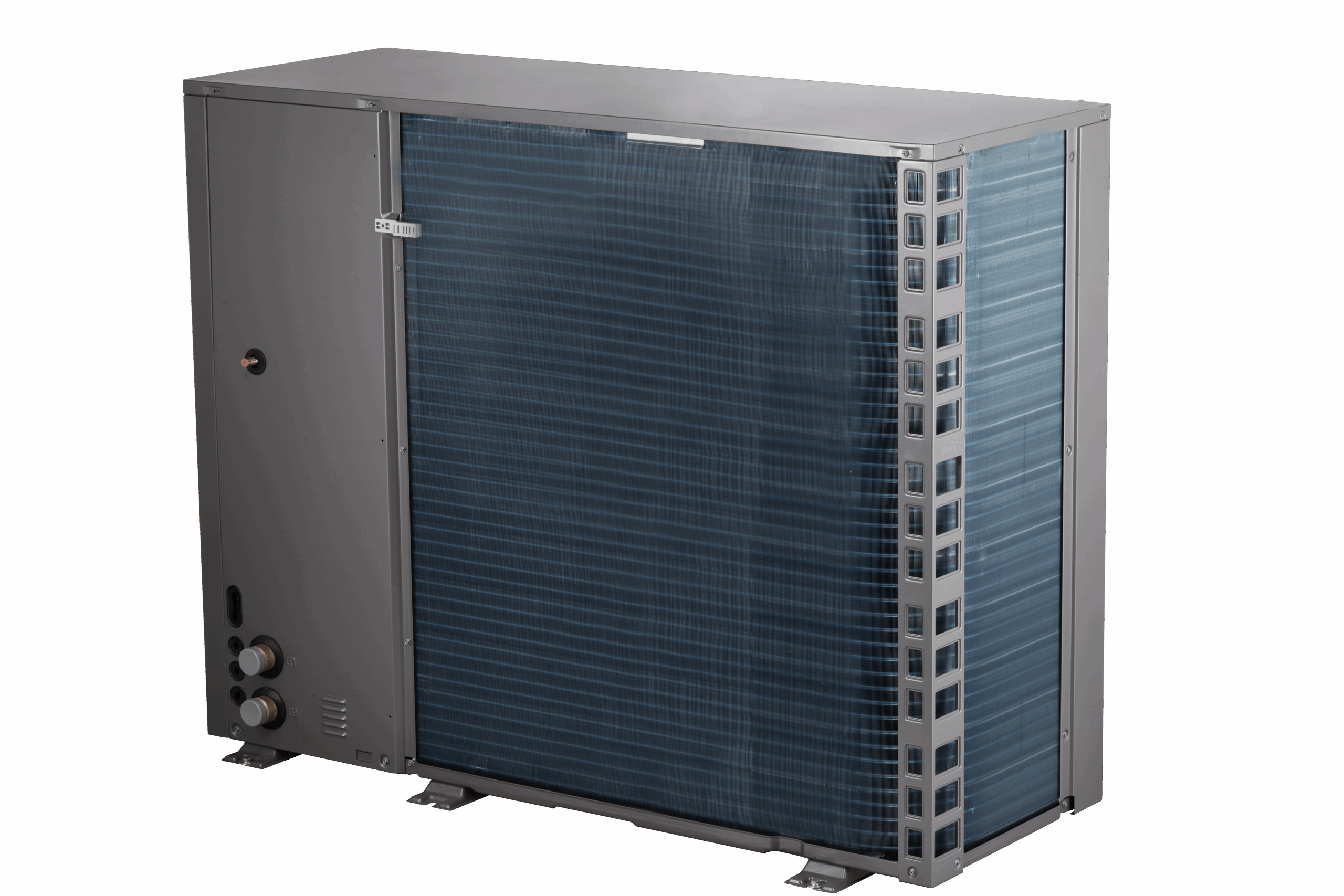

SELECTED MODEL:RSJ-15/190RDN7-L2
| Model | MHC-V8WD2N7-B | MHC-V10WD2N7-B | MHC-V12WD2N7-B | MHC-V14WD2N7-B | MHC-V16WD2N7-B | ||
|---|---|---|---|---|---|---|---|
| Power supply | V/Ph/Hz | 220-240/1/50 | |||||
| Heating A7W35 | Capacity | W | 8000 | 9500 | 12100 | 14000 | 15500 |
| Rated input | W | 1524 | 1919 | 2444 | 2979 | 3444 | |
| COP | 5.25 | 4.95 | 4.95 | 4.7 | 4.5 | ||
| Heating A7W45 | Capacity | W | 8100 | 9500 | 12300 | 14100 | 15500 |
| Rated input | W | 2025 | 2436 | 3154 | 3760 | 4247 | |
| COP | 4 | 3.9 | 3.9 | 3.75 | 3.65 | ||
| Heating A7W55 | Capacity | W | 8000 | 9500 | 11900 | 13800 | 16000 |
| Rated input | W | 2388 | 2969 | 3662 | 4381 | 5246 | |
| COP | 3.35 | 3.2 | 3.25 | 3.15 | 3.05 | ||
| Heating A-7W35 | Capacity | W | 7000 | 8000 | 10000 | 12000 | 13100 |
| Rated input | W | 2154 | 2540 | 3175 | 4286 | 4852 | |
| COP | 3.25 | 3.15 | 3.15 | 2.8 | 2.7 | ||
| Cooling A35W18 | Capacity | W | 8300 | 10000 | 12000 | 14000 | 15000 |
| Rated input | W | 1581 | 2174 | 2609 | 3182 | 3529 | |
| COP | 5.25 | 4.6 | 4.6 | 4.4 | 4.25 | ||
| Cooling A35W7 | Capacity | W | 7450 | 8100 | 11500 | 12400 | 14000 |
| Rated input | W | 2224 | 2613 | 3770 | 4133 | 5185 | |
| COP | 3.35 | 3.1 | 3.05 | 3 | 2.7 | ||
| SCOP | Average climate, W35°C | A+++ | |||||
| 5.35 | 5.33 | 4.94 | 4.76 | 4.72 | |||
| Average climate, W55°C | A+++ | ||||||
| 4.06 | 4.01 | 3.96 | 3.85 | 3.86 | |||
| SEER | Average climate, W7°C | 5.61 | 5.53 | 4.99 | 4.97 | 4.98 | |
| Average climate, W18°C | 7.63 | 7.67 | 7.03 | 6.94 | 6.87 | ||
| ErP sound power level | dB | 53 | 54 | 55 | 57 | 59 | |
| Sound pressure | Heating A7W35 | dB(A) | 40 | 41 | 43 | 46 | 49 |
| (1m) | Cooling A35W18 | dB(A) | 39 | 41 | 42 | 43 | 44 |
| Refrigerant | Type (GWP) | R290 (3) | |||||
| Charged volume | g | 1100 | 1500 | ||||
| Unit dimensions (H×W×D) | mm | 1051 ×1330×475 | |||||
| Packing dimensions (H×W×D) | mm | 1235×1390×570 | |||||
| Net/Gross weight | kg | 148/170 | 169/191 | ||||
| Water side connection | G1 1/4″BSP | ||||||
| Outdoor air | Cooling | °C | -5 ~ 46 | ||||
| temperature | Heating | °C | -25 ~ 35 | ||||
| range | DHW | °C | -25 ~ 46 | ||||
| Water setting | Cooling | °C | 5 ~ 25 | ||||
| temperature | Heating | °C | 25 ~ 80 | ||||
| range | DHW | °C | 20 ~ 70 | ||||
Storage size (L) 170
Running ambient temp – HP only (°C) -7 ~ 43
Running ambient temp – HP & E-Heater (°C) -20 ~ 47
Out water Temp. (°C)
Default 60°C, 55°C~70°
Dimension (DxH) (mm)
552 x 552 x 1692
Net/gross weight (kg) 95.5 / 119
Sound pressure level (dB(A)) 47
Refrigerant type/quantity (kg)
R290 / 0.29
Power supply (Ph / V / Hz)
1 / 220~240 / 50
Capacity – HP Only (kW) 1.8
COP (kW/kW) 4.2
Max. current (A) 8.5
Air flow (L/S) 150
Water inlet pipe (mm) DN20
Water outlet pipe (mm) DN20
Drainage pipe (mm) DN20
PT valve joint (mm) DN15
Max. pressure (kPa) 850
SELECTED MODEL:RSJ-15/190RDN7-L2
| Model | MHC- V8WD2RN7-B | MHC- V10WD2RN7-B | MHC- V12WD2RN7-B | MHC- V14WD2RN7-B | MHC- V16WD2RN7-B |
||
|---|---|---|---|---|---|---|---|
| Power supply | V/Ph/Hz | 380-415/3/50 | |||||
| Heating A7W35 | Capacity | W | 8000 | 9500 | 12100 | 14000 | 15500 |
| Rated input | W | 1524 | 1919 | 2444 | 2979 | 3444 | |
| COP | 5.25 | 4.95 | 4.95 | 4.7 | 4.5 | ||
| Heating A7W45 | Capacity | W | 8100 | 9500 | 12300 | 14100 | 15500 |
| Rated input | W | 2025 | 2436 | 3154 | 3760 | 4247 | |
| COP | 4 | 3.9 | 3.9 | 3.75 | 3.65 | ||
| Heating A7W55 | Capacity | W | 8000 | 9500 | 11900 | 13800 | 16000 |
| Rated input | W | 2388 | 2969 | 3662 | 4381 | 5246 | |
| COP | 3.35 | 3.2 | 3.25 | 3.15 | 3.05 | ||
| Heating A-7W35 | Capacity | W | 7000 | 8000 | 10000 | 12000 | 13100 |
| Rated input | W | 2154 | 2540 | 3175 | 4286 | 4852 | |
| COP | 3.25 | 3.15 | 3.15 | 2.8 | 2.7 | ||
| Cooling A35W18 | Capacity | W | 8300 | 10000 | 12000 | 14000 | 15000 |
| Rated input | W | 1581 | 2174 | 2609 | 3182 | 3529 | |
| COP | 5.25 | 4.6 | 4.6 | 4.4 | 4.25 | ||
| Cooling A35W7 | Capacity | W | 7450 | 8100 | 11500 | 12400 | 14000 |
| Rated input | W | 2224 | 2613 | 3770 | 4133 | 5185 | |
| COP | 3.35 | 3.1 | 3.05 | 3 | 2.7 | ||
| SCOP | Average climate, W35°C | A+++ | |||||
| 5.35 | 5.33 | 4.94 | 4.76 | 4.72 | |||
| Average climate, W55°C | A+++ | ||||||
| 4.06 | 4.01 | 3.96 | 3.85 | 3.86 | |||
| SEER | Average climate, W7°C | 5.61 | 5.53 | 4.99 | 4.97 | 4.98 | |
| Average climate, W18°C | 7.63 | 7.67 | 7.03 | 6.94 | 6.87 | ||
| ErP sound power level | dB | 53 | 54 | 55 | 57 | 59 | |
| Sound pressure | Heating A7W35 | dB(A) | 40 | 41 | 43 | 46 | 49 |
| (1m) | Cooling A35W18 | dB(A) | 39 | 41 | 42 | 43 | 44 |
| Refrigerant | Type (GWP) | R290 (3) | |||||
| Charged volume | g | 1100 | 1500 | ||||
| Unit dimensions (H×W×D) | mm | 1051 ×1330×475 | |||||
| Packing dimensions (H×W×D) | mm | 1235×1390×570 | |||||
| Net/Gross weight | kg | 153/175 | 169/191 | ||||
| Water side connection | G1 1/4″BSP | ||||||
| Outdoor air | Cooling | °C | -5 ~ 46 | ||||
| temperature | Heating | °C | -25 ~ 35 | ||||
| range | DHW | °C | -25 ~ 46 | ||||
| Water setting | Cooling | °C | 5 ~ 25 | ||||
| temperature | Heating | °C | 25 ~ 80 | ||||
| range | DHW | °C | 20 ~ 70 | ||||
Storage size (L) 170
Running ambient temp – HP only (°C) -7 ~ 43
Running ambient temp – HP & E-Heater (°C) -20 ~ 47
Out water Temp. (°C)
Default 60°C, 55°C~70°
Dimension (DxH) (mm)
552 x 552 x 1692
Net/gross weight (kg) 95.5 / 119
Sound pressure level (dB(A)) 47
Refrigerant type/quantity (kg)
R290 / 0.29
Power supply (Ph / V / Hz)
1 / 220~240 / 50
Capacity – HP Only (kW) 1.8
COP (kW/kW) 4.2
Max. current (A) 8.5
Air flow (L/S) 150
Water inlet pipe (mm) DN20
Water outlet pipe (mm) DN20
Drainage pipe (mm) DN20
PT valve joint (mm) DN15
Max. pressure (kPa) 850
Designed and built for the most extreme conditions globally, with the operating range from -20°C to 55°C.
