Name: Ducted Series - VEU - Midea
Price: 64.00 EUR
Availability: InStock

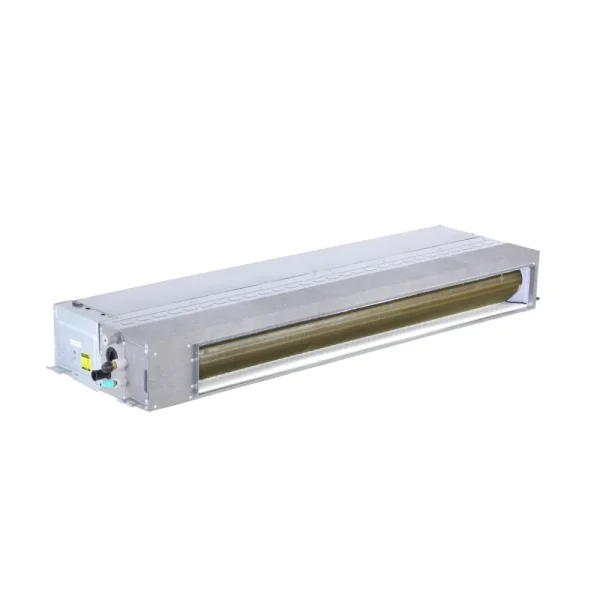

Ducted Series – VEU

Features

VEU approved product, high VEEC
All flare connections, the easiest VRF to install
Longer piping capability
Full DC inverter technology , high efficiency
Wide operation range
Static pressure control, provide comfortable environment
7 step fan speed options
Refrigerant precharged , no additional refrigerant required

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

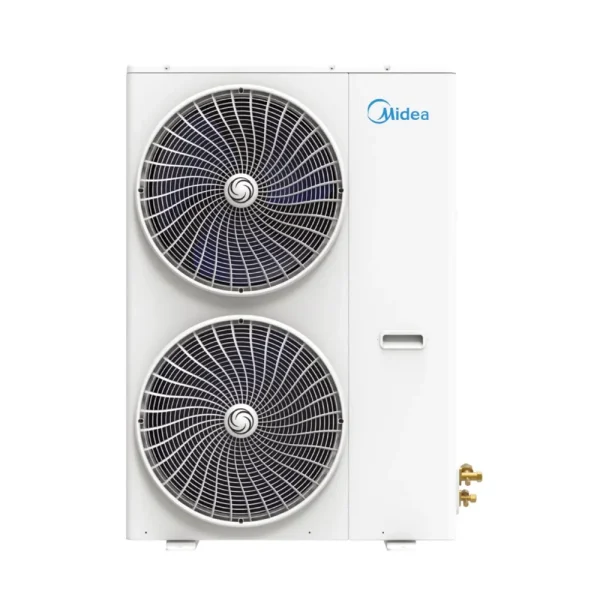

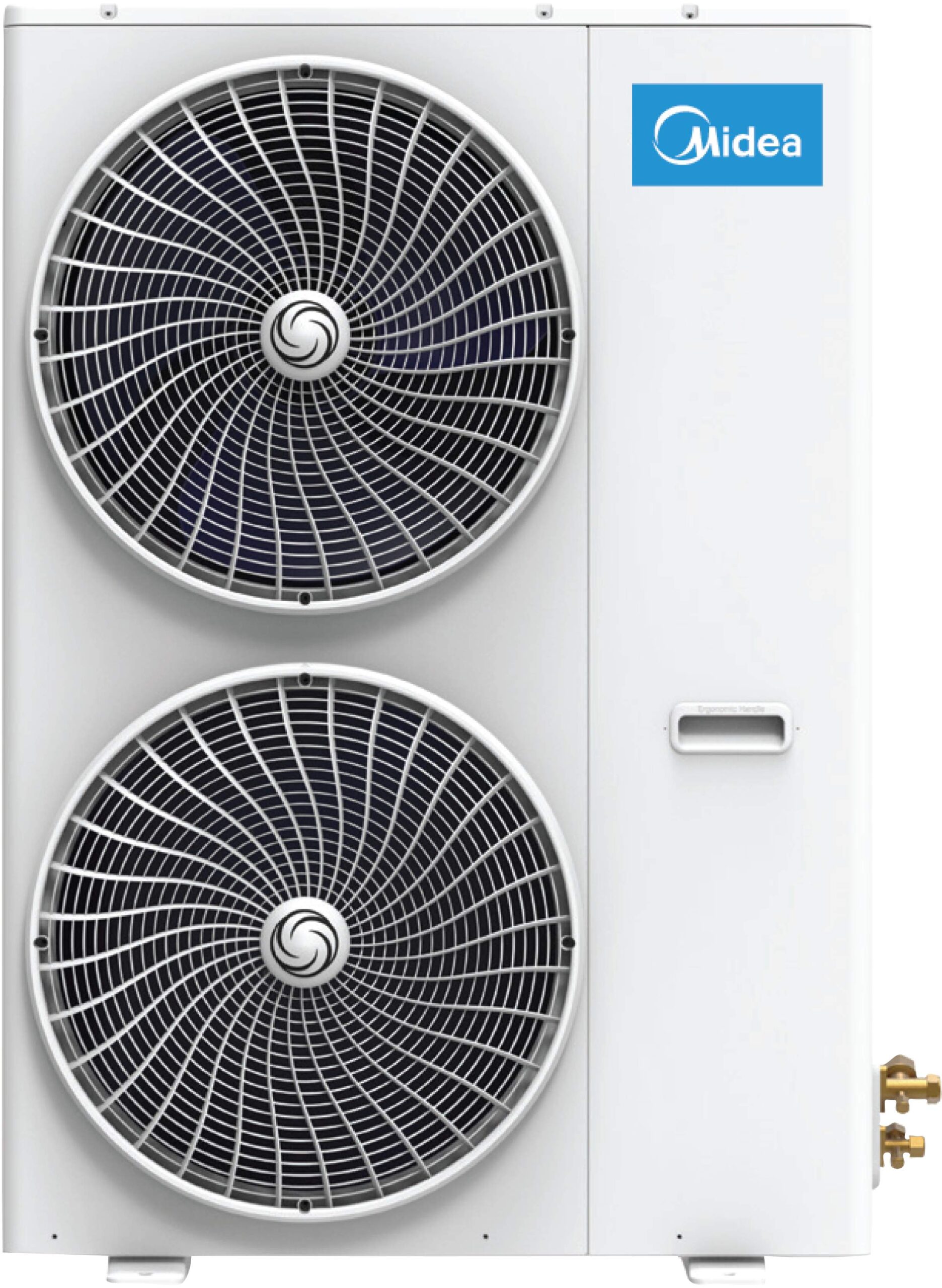

Model			MDV-V230WN1(AU)
Power supply		V/N/Hz	220-240/1/50
Heating	Capacity	kW	23.0
Heating	Power input	kW	5.28
Cooling	Capacity	kW	19.5
Cooling	Power input	kW	5.6
Connected indoor unit	Total capacity		60-130% of outdoor unit capacity
Connected indoor unit	Maximum quantity		12
Ambient temp.	Cooling	°C	-15~55
operation range	Heating	°C	-20~27
Sound pressure level(cooling/heating)		dB(A)	59/59
Refrigerant	Type		R410A
Refrigerant	Charge	Kg	4.4
pipe size	Liquid	mm	9
	Gas	mm	19
	Max. height diff_x001d_erence	m	30(ODU up)
	Max. height diff_x001d_erence	m	20(ODU down)
	Max. piping length	m	80
Net dimension(WHD)		mm	902×1327×320
Packing dimension(WHD)		mm	1082X1406X434
Net/Gross weight		kg	103/111

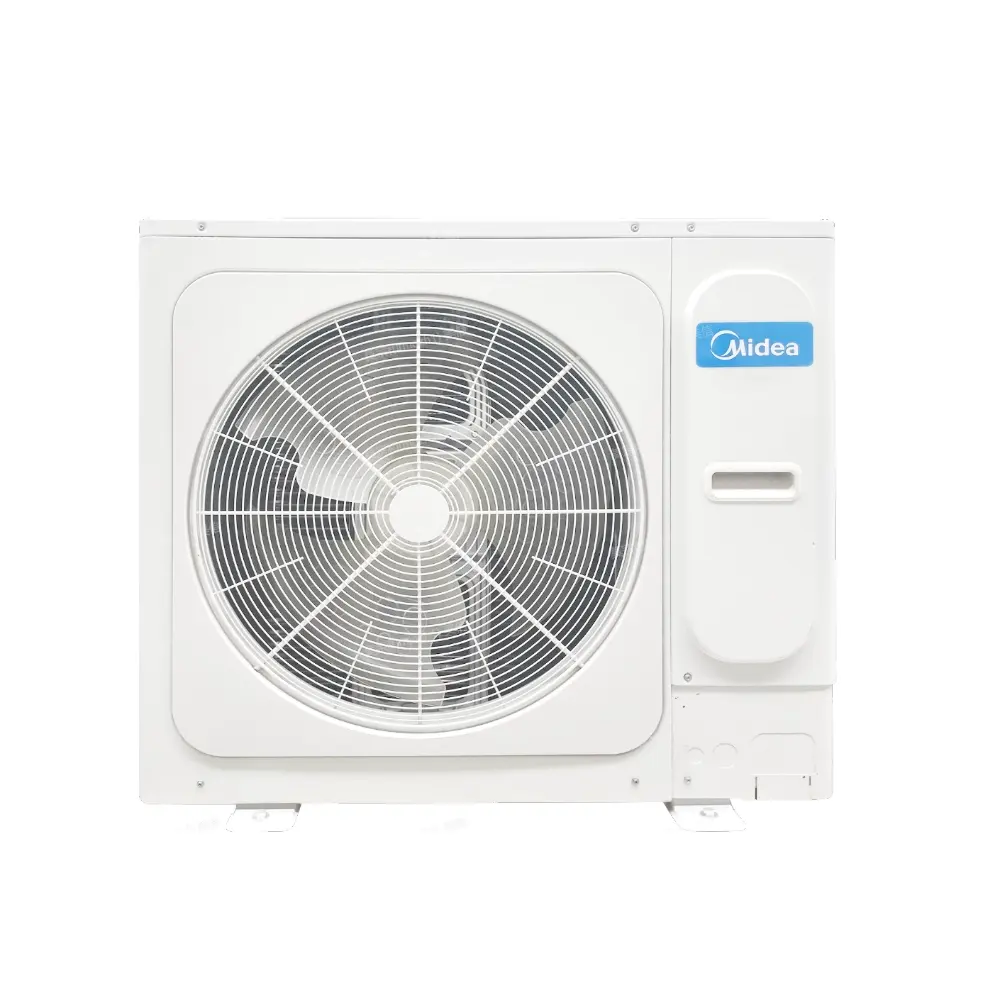

Model Name			MDV-V250WN1D(AU)-A
Power Supply		V/Ph/Hz	220-240/1/50
Heating¹	Capacity	kW	25
	Power input	kW	5.79
	ACOP		4.2
Cooling²	Capacity	kW	20
	Power input	kW	4.95
	AEER		4.2
Connected indoor unit	Total capacity		50-130% of outdoor unit capacity⁴
Connected indoor unit	Maximum quantity		6
Ambient temp.Operation range	Cooling	°C(DB)	-5~55
Ambient temp.Operation range	Heating	°C(WB)	-15~27
Sound pressure level (cooling/heating)³		dB(A)	59/59
Refrigerant	Type		R410A
	Factory charge	kg	6.8
	Pre-Charged Length	m	20
Pipe size	Liquid pipe	mm	9.53
	Gas pipe	mm	19.1
	Max. height difference	m	30(ODU up)
	Max. height difference	m	20(ODU down)
	Max. piping length	m	60
Net dimensions (WxHxD)		mm	1120×1558×528
Packed dimensions (WxHxD)		mm	1270×1720×565
Net/ Gross weight		kg	129/145

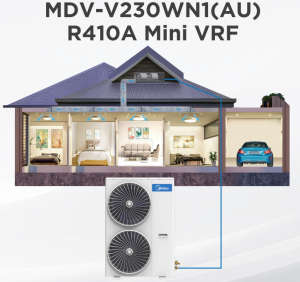

Midea_MDV-V230WN1(AU) Brochure

Midea_HSP（MIH180-280T1HN18(S)EU）-Brochure

Midea_MDV-V250WN1D(AU) -A Brochure

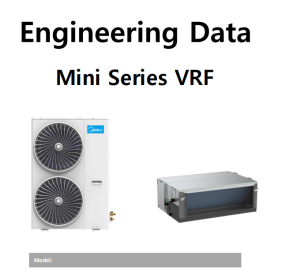

Midea_MDV-V230WN1(AU)
Engineering Data

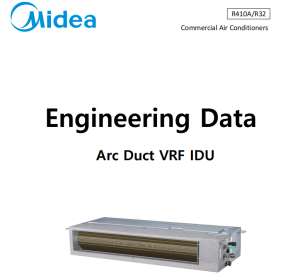

Midea_V8_Arc_Duct_VRF Engineering Data Book
